From a Backyard Oasis to Community Ponds
Fixed Fountains
NEW TO OTTERBINE - Fixed Fountain systems are available for all of our 1/2HP-5HP Aerating Fountain patterns; perfect for applications where a floating unit won’t suffice! These systems are ideal for architectural concrete basins, indoors and out and can be modified for earthen bottoms. Additional details are available in our catalog.
Video
Fixed Fountains

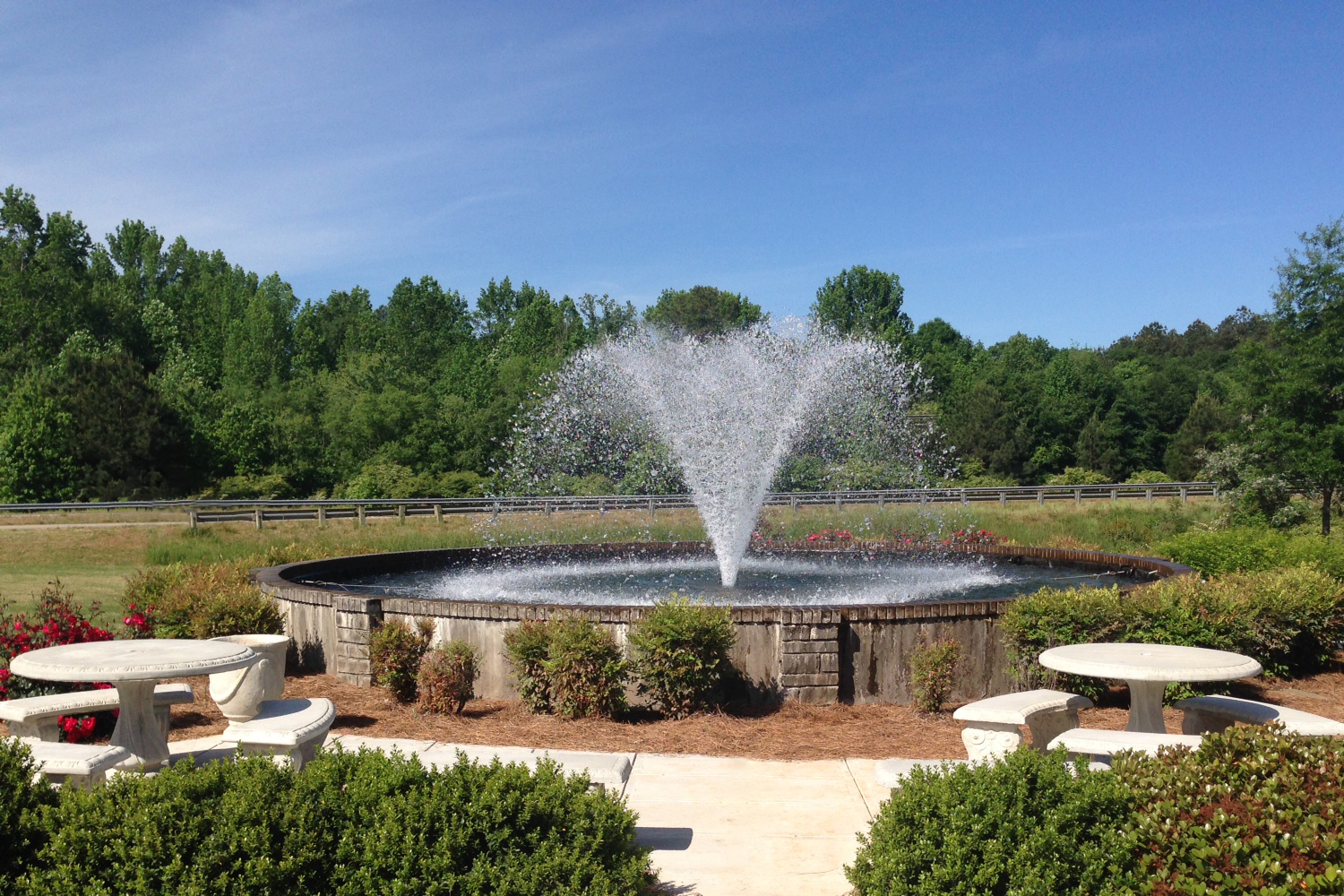

Fixed Fountain systems are ideal for architectural concrete basins, indoors and out and can be modified for earthen bottoms!
Features
Fixed Fountain systems are available for all of our 1/2HP-5HP Aerating Fountain patterns; perfect for applications where a floating unit won’t suffice! These are ideal for architectural concrete basins, indoors and out and can be modified for earthen bottoms. Check out some of their features below:
Perfect for Every Application
Whether it's a man-made basin or a backyard pond Otterbine's fixed fountains will help enhance the beauty of your water. Adjustable legs make it perfect for varying depths and uneven slopes.
Provides Natural & Effective Water Quality Solutions
Introduces oxygen into the water for a natural solution to water quality management; effectively controlling algae, aquatic weeds, and odors.
Proven Performance
Otterbine is the only manufacturer to have oxygen transfer and pumping rates independently tested and published on their aeration systems.
Complete Package
Most systems come complete with unit, power control center, and cable with cable quick disconnect standard for ease of installation.
Safety Listed & Protected
Package electrically safety tested and listed with ETL, ETL-C conforming to UL standards. Products for European Union are also safety tested, approved and carry a 3rd party independent CE mark.
RGBW Lighting
Create amazing effects with pre-programmed color sequences! You control the speed, intensity, and whether you you have a multi or solid color display! Standard LED lighting is also available.
Fixed Fountain Depths
| Minimum Operating Depth | ⠀ | 1/2HP ⠀ | 1-5HP ⠀ | ⠀ | ⠀ | ⠀ | ⠀ | 14in | 22in | ⠀ | ⠀ |
|---|---|---|---|---|---|
| ⠀ | ⠀ | 36cm | 56cm | ⠀ | ⠀ |
| Maximum Operating Depth | ⠀ | 1/2HP ⠀ | 1-5HP ⠀ | ⠀ | ⠀ | ⠀ | ⠀ | 20in | 30in | ⠀ | ⠀ |
|---|---|---|---|---|---|
| ⠀ | ⠀ | 51cm | 76cm | ⠀ | ⠀ |
*Fixed Fountains are available in every aerating fountain pattern and will replace the fountain Float with a marine grade stainless steel Stand. Each Stand will come assembled with rubber pads to be used on solid/masonry bottomed applications. These pads will need to be removed for earthen surfaces.
Unit Construction
The Fixed Fountain Stand is constructed out of 316 stainless steel, with 304 stainless steel hardware. It is designed with adjustable legs that can be used in depths between 22in (56cm) to 30in (76cm).
Corrosion Resistant Materials
All components are manufactured with stainless steel and minimal plastic components for use in brackish water environments.
Easy Handling
Small and lightweight allows for ease of maneuverability, with adjustable legs to accommodate water features between at varying depths and uneven slopes.
Fixed Unit
Otterbine Fixed Fountains don't require any additional plumbing or vats.
Unit Illustration
-
1
Adjustable legs perfect for varying depths and slopes.
-
2
Rubber pads for earthen bottoms - these should be removed for applications with concrete/masonry bottoms.
-
3
Light brackets perfect for those looking to add a little pizazz to their fountain's nighttime displays.
Installation
Fixed Fountain stands come assembled as the requested spray pattern.
-
1
Install Power Control Center: Power control center is mounted onshore; a certified electrician is recommended to perform this step.
-
2
Lay Power Cable: Bury/trench power in conduit to water's edge, connect plug to unit.
-
3
Place unit in Water: For earthen bottoms remember to remove the rubber pads on the Fixed Fountain's adjustable legs. Each leg can be adjusted individually to accommodate varying depths and slopes.
Maintenance & Winterization
Maintenance
The Fractional Series requires no preventative or annual maintenance. Should the screen clog, it can be cleaned by turning the unit off, unplugging it from the power source, and removing debris by hand or with a wire brush.
Aerating Fountains require minimal maintenance, to insure years of dependable service we recommend the following:
-
1
Once a year: Disconnect unit from power and physically inspect aerator, stand and electrical cable.
-
3
Every three years: An oil change is suggested to keep your aerator running smoothly.
Winterization
- Gemini, High Volume, and Mixer can remain in the water during the winter in freezing climates but will need to run a minimum of 12 hours per day, and should run 24 hours per day when temperatures drop below 20° Fahrenheit or -7° Celsius.
- Phoenix and Rocket must be removed in climates that experience cold winters and frozen waters before lakes freeze over.
NOTE: Units should never be stored upside down.
Light Up the Night
Check out some of the amazing RGBW and LED lighting packages offered by Otterbine. Our color changing RGBW LED lights put out vibrant and bright colors all while being energy efficient!
